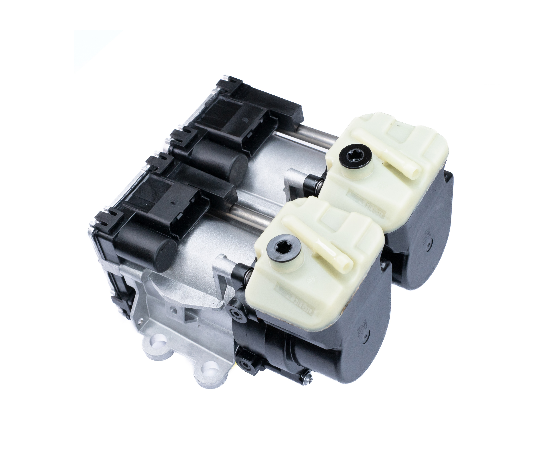

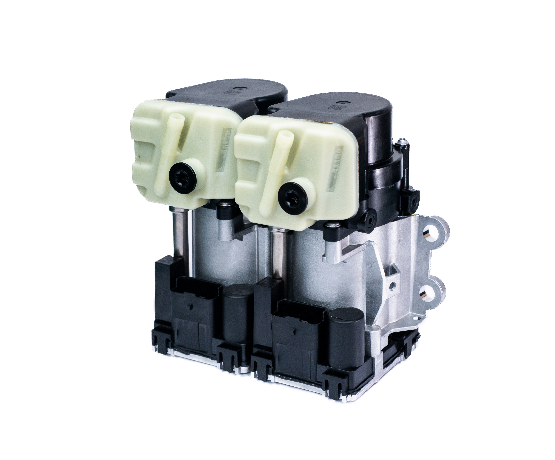

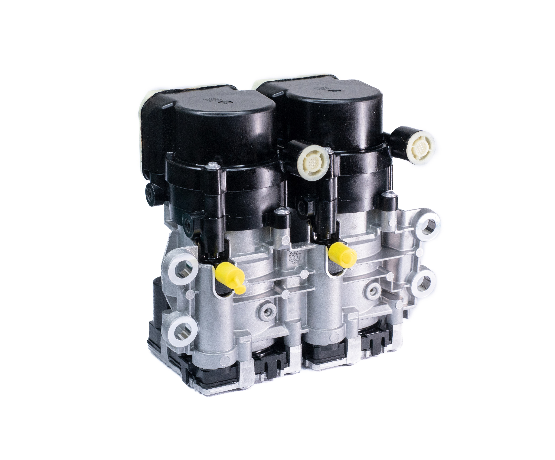

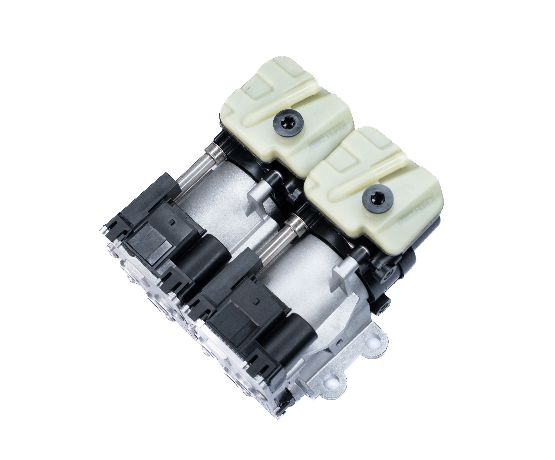

This product is installed on the gearbox and drives the electro-hydraulic actuator dual clutch system through position and pressure demand. The product uses high-precision roller lead screw to transmit power. A displacement sensor is installed at the end of the piston. Accurate control is realized through the comprehensive algorithm of displacement sensor and motor angle sensor. There is a pressure sensor on the clutch side of the piston to detect whether the oil pressure required for clutch action is reached. Under all defined working conditions, it is necessary to meet the functional safety.

The hydraulic electronic actuator is the clutch operating mechanism in the automatic transmission. Its principle is to drive the hydraulic rod and piston to move by controlling the two actuating motors, and transmit the power to the clutch actuator under the action of, so as to realize the engagement and separation of the two clutches with the power input shaft under different matching conditions.

This product is mainly used in double clutch gearbox.
